Shale Shaker Screen

The Drilling Fluid Shale Shaker is the first-level purification equipment of the Mud Recycling System for Drilling Rig. The Drilling Fluid Shale Shaker separate the large and useless solid particles in the drilling fluid, and is one of the most important equipment in the Mud Recycling System for Drilling Rig. The Drilling Fluid Shale Shaker mainly separates the useless solid phase in the drilling fluid to the maximum extent, recovers the useful liquid, and reduces the filtration loss, thereby reducing the requirements for new drilling mud, thereby reducing the input cost of new mud materials, thereby reducing the total drilling cost. At the same time, more drilling fluid is recycled, the solid phase in the drilling fluid is reduced, and the cost of drilling waste disposal is also reduced.

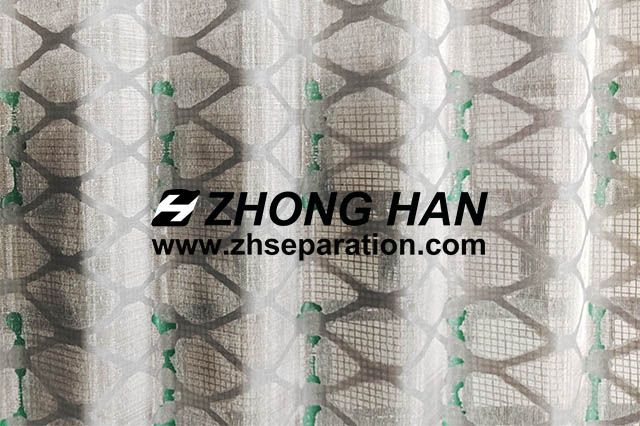

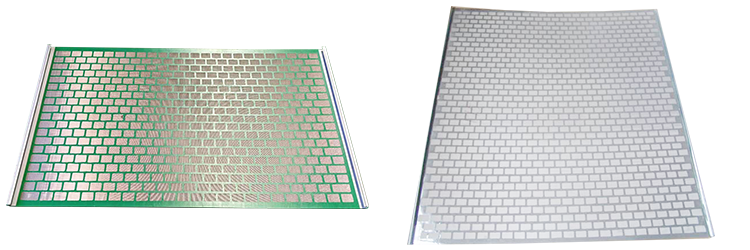

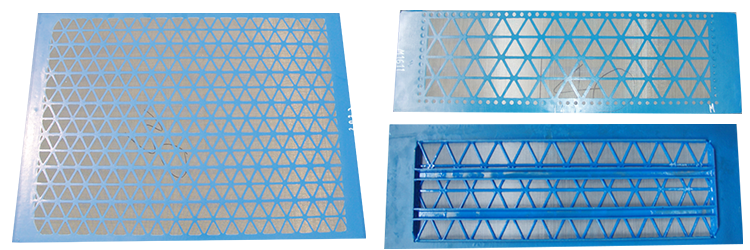

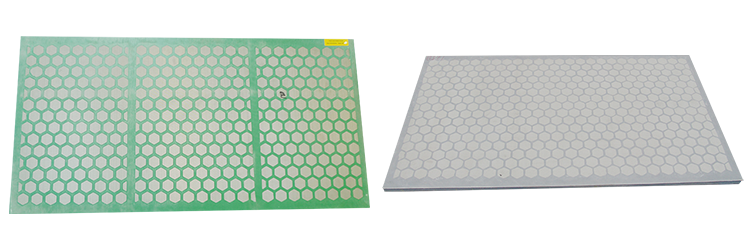

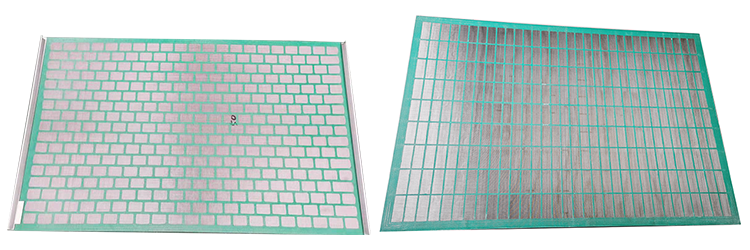

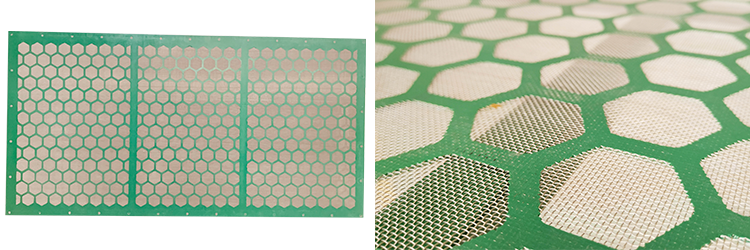

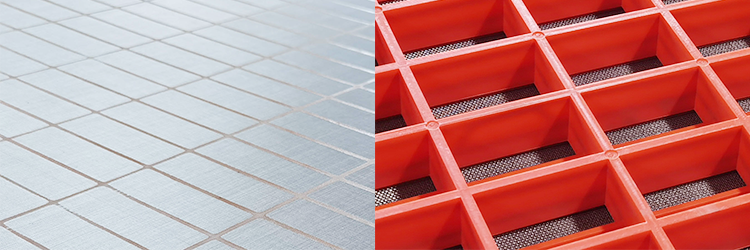

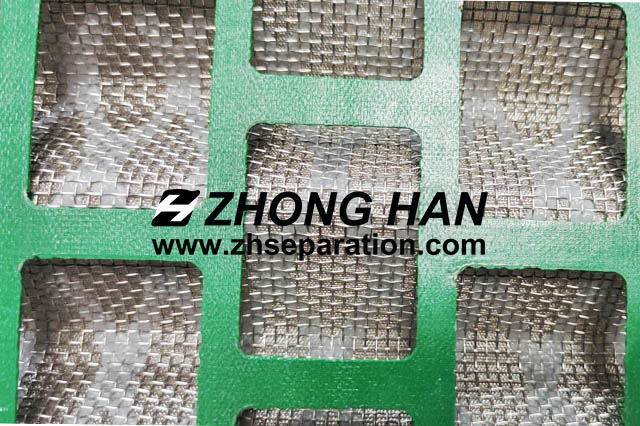

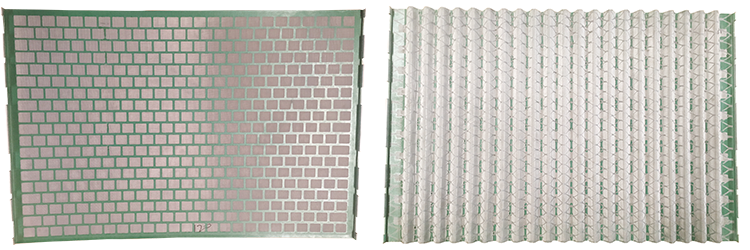

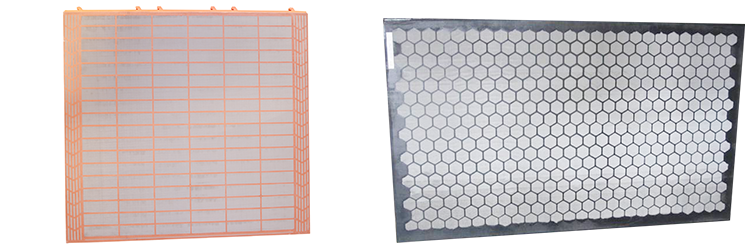

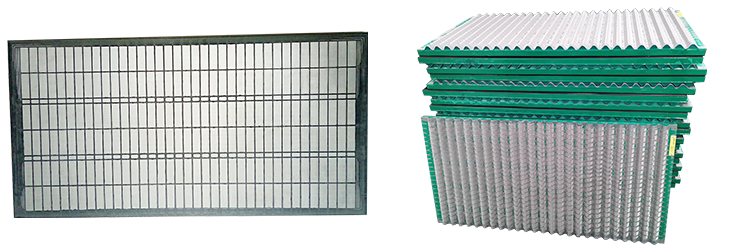

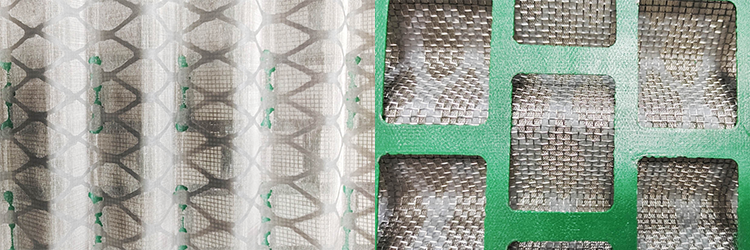

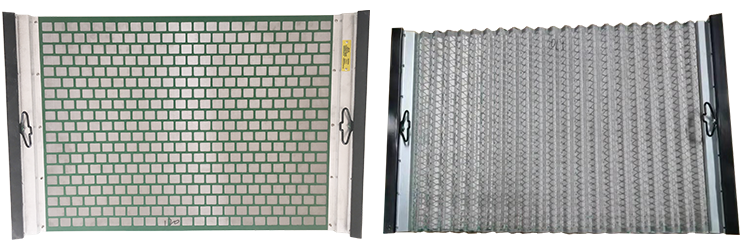

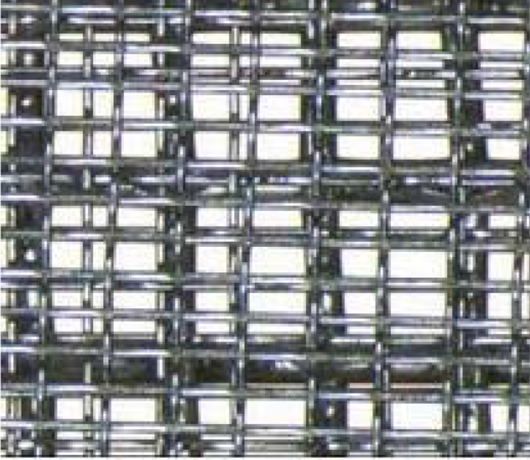

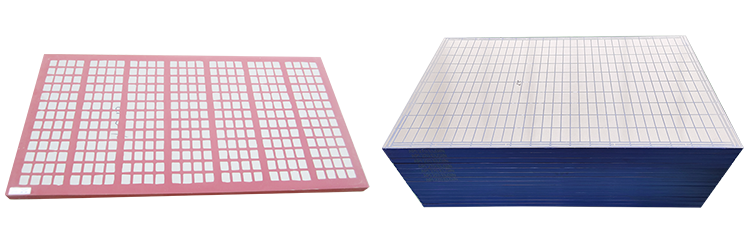

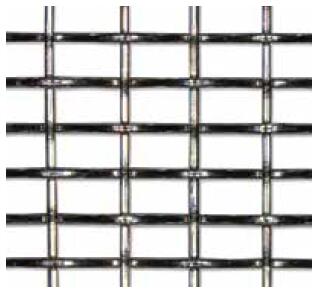

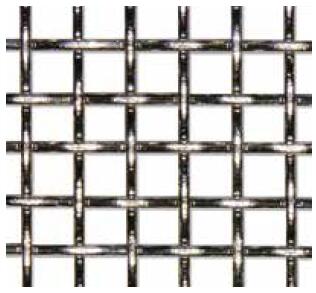

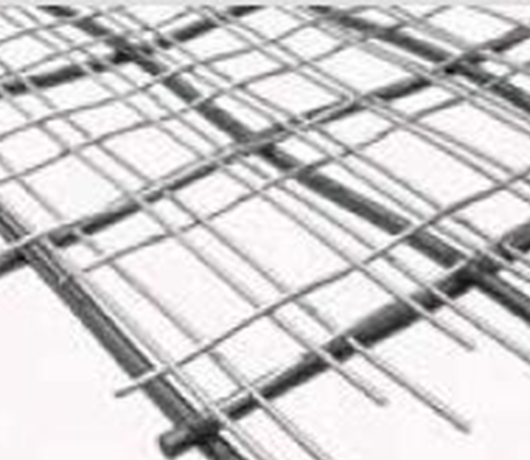

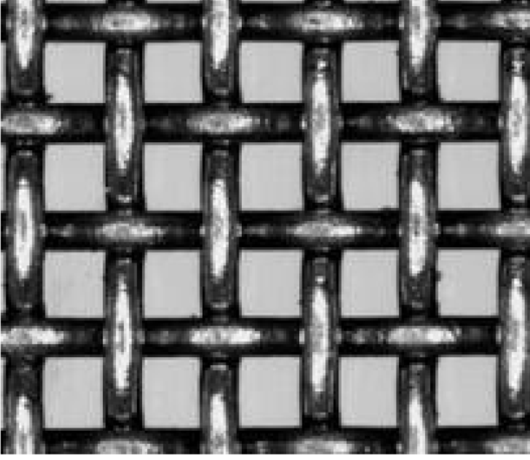

The Shale Shaker Screen is an important accessory of the Drilling Fluid Shale Shaker and the wearing part with the largest consumption. Therefore, the quality of the Shale Shaker Screen can determine the cost of drilling to a certain extent. Therefore, a Shale Shaker Screen with a long service life is very important for the drilling fluid vibrating screen. Therefore, many companies have spent a lot of energy on the structural design of the screen and the hole design of the wire mesh, so that the screen not only has a long service life but also has a high separation efficiency. For example, Derrick invented the Pyramidal Shale Shaker Screen(PMD), and MI-SWACO invented the Composite Frame Shale Shaker Screen. These inventions and creations are all for one goal: to maximize the separation of the useless solid phase in the drilling fluid, to recover the useful liquid, to reduce the filtration loss, to improve the screen and work efficiency, to increase the service life of the screen, and to minimize the drilling cost.

D100 Separation (Micron)	API Screen Number	D100 Separation (Micron)	API Screen Number
>780,0 to 925,0	API 20	>165,0 to 137,5	API 120
>655,0 to 780,0	API 25	>98,0 to 165,0	API 140
>550,0 to 655,0	API 30	>82,5 to 98,0	API 170
>462,5 to 550,0	API 35	>69,0 to 82,5	API 200
>390,0 to462,0	API 40	>58,0 to 69,0	API 230
>327,5 to390,0	API 45	>49,0 to 58,0	API 270
>275,0 to 327,5	API 50	>41,5 to 49,0	API 325
>231,0 to 275,0	API 60	>35,0 to 41,5	API 400
>196,0 to 231,0	API 70	>28,5 to 35,0	API 450
>165,0 to 196,0	API 80	>22,5 to 28,5	API 500
>137,5 to 165,0	API 100	>18,5 to 22,5	API 635

ASTM Mesh and Cut Point		API Mesh and Cut Point
D100 Cut Point, Microns	ASTM Single Mesh	D100 Cut Point	API Number
2000	ASTM 10 Mesh	>1850,0 to 2180,0	API 10 Mesh
1000	ASTM 18 Mesh	>780,0 to 925,0	API 20 Mesh
850	ASTM 20 Mesh	>462,5 to 550,0	API 35 Mesh
710	ASTM 25 Mesh	>390,0 to 462,5	API 40 Mesh
600	ASTM 30 Mesh	>275,0 to 327,5	API 50 Mesh
500	ASTM 35 Mesh	>231,0 to 275,0	API 60 Mesh
425	ASTM 40 Mesh	>196,0 to 231,0	API 70 Mesh
355	ASTM 45 Mesh	>165,5 to196,0	API 80 Mesh
300	ASTM 50 Mesh	>137,5 to 165,0	API 100 Mesh
250	ASTM 60 Mesh	>165,0 to 137,5	API 120 Mesh
212	ASTM 70 Mesh	>98,0 to 116,5	API 140 Mesh
180	ASTM 80 Mesh	>82,5 to 98,0	API 170 Mesh
150	ASTM 100 Mesh	>69,0 to 82,5	API 200 Mesh
125	ASTM 120 Mesh	>58,0 to 69,0	API 230 Mesh
106	ASTM 140 Mesh	>49,0 to 58,0	API 270 Mesh
90	ASTM 170 Mesh	>41,5 to 49,0	API 325 Mesh
75	ASTM 200 Mesh	>35 to 41,5	API 400 Mesh
63	ASTM 230 Mesh
53	ASTM 270 Mesh
45	ASTM 325 Mesh
38	ASTM 400 Mesh

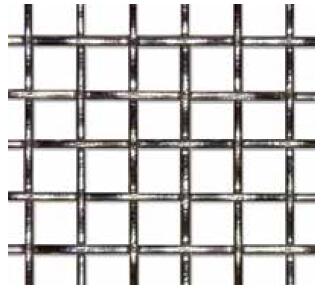

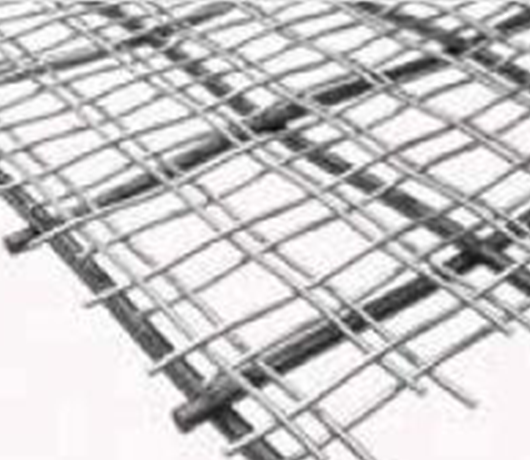

ASTM is short for The American Society for Testing and Materials, ASTM E11:01 mesh equals to ISO 33101:2000 mesh. This method determines the cut point of single layer ASTM screen mesh size. For shaker screen mesh, normally means the surface screen mesh size. Whilst the shaker screen is usually a composition of 2 or 3 layers, the cut point of the first layer mesh is not equal to the final shaker screen cut point.
API is short for American Petroleum Institute, “API Number” is determined by API RP13C or ISO13501, the cut point is related to the combined 3-layer wire mesh test result. So before order, we will need API number, or the cut point, to define a more proper shaker screen configuration.
