Desanding plants are useded to remove soilds particles in drilling mud(Drilling Slurry) and support slurries used in foundation engineering. They can be either water-bentonite, water-polymere, or watercement and bentonite slurries. Compared with traditional Mud Recycling System for emove soilds particles in drilling mud(Drilling Slurry), Desanding plants has more structure compact, and more small footprint,  Desanding plants are integrated Slurry Separation Systems.

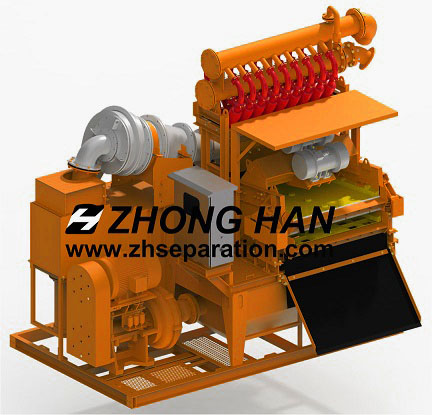

As a professional Slurry Separation Systems provider, ZH has the Two Stage Treatment Desanding Plants and Three Stage Treatment Desanding Plants to meet different construction requirements of foundation engineering. From the product name we know, Two Stage Treatment Desanding Plants means the Desanding Plants provide two stage separation to remove soilds particles in drilling mud(Drilling Slurry)- Coarse Shale Shaker Screen separation and Desander/Desilter Cyclones for removing fine particles from the drilling mud(Drilling Slurry). Three Stage Treatment Desanding Plants means the Desanding Plants provide three stage separation to remove soilds particles in drilling mud(Drilling Slurry)- Coarse Shale Shaker Screen separation, Desander Cyclones and Desilter Cyclones for removing fine particles from the drilling mud(Drilling Slurry).

• Coarse Shale Shaker Screen for intercepting stones larger than 5 mm.
• Storage tank of the Coarse Shale Shaker Screen.
• Cyclone(Desander Cyclones and Desilter Cyclones) with cyclone feeder pump for removing fine particles from the drilling mud(Drilling Slurry).
• Dewatering screens for draning further water from the solids discharged by the cyclone underflow.

• Three Stage Treatment Desanding Plants means the Desanding Plants provide three stage separation to remove more fine soilds particles in drilling mud(Drilling Slurry). Double-Cycloning, provide further increase in the regeneration or cleaning efficienc y can be achieved by adding a 2nd regeneration stage after the main cyclone module, comprising of several small cyclones. The overflow of cleaned slurry from the main cyclone unit is discharged into a slurry storage tank from where it is pumped int o cyclones of smaller diameters by a cyclone feeder pump,cleaned further and charged into the storage tank as overflow of slurry. The condensed under-flow of slurry from stages 1st and 2nd of cyclone treatment are discharged onto the dewatering screen.
• Three Stage Treatment Desanding Plants for Foundation Engineering realize drilling slurry recycle work, so can save the configuration of drilling slurry materials, reduce the use of drilling slurry materials cost.
• Three Stage Treatment Desanding Plants for Foundation Engineering has high work effectively, which ensure the high efficient to remove soilds particles in drilling mud(Drilling Slurry), so that the wotk performance of drilling mud(Drilling Slurry) can be meet the requirement of foundation engineering machines.
• Three Stage Treatment Desanding Plants for Foundation Engineering has Simple operation, low failure rate and easy installation.
• Three Stage Treatment Desanding Plants for Foundation Engineering provide 100% Slurry Closed Circulation, Greatly reduces the damage to the environment caused by construction projects and protects the environment.
