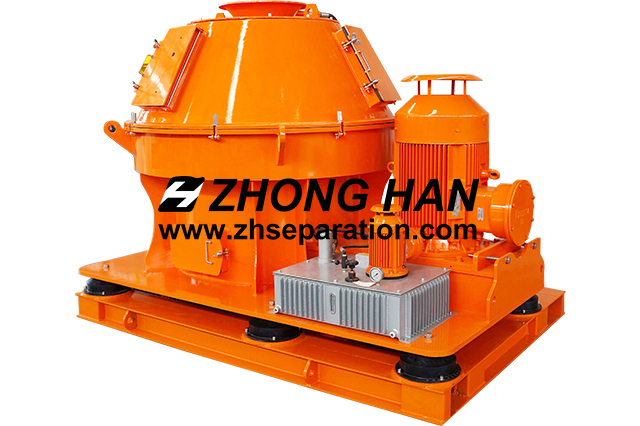

Vertical Cuttings Dryer is also called Vertical centrifuge, with the help of the high speed vertical centrifuge G force, Vertical Cuttings Dryer can separate drilling cuttings and liquid maximum, recover the costly drilling fluid and meet the requirements of environmental protection. Compared with Decanter centrifuge, Vertical Cuttings Dryer can handle a lot of processing, Capacity of Vertical Cuttings Dryer up to 60 ton per hour, and the Solid phase oil content not more than 5% by wet weight.

With the help of conveying equipment (screw conveyor, vacuum pump), drill cuttings enter the material inlet above the Vertical Cuttings Dryer, and then enter the inside of the Vertical Cuttings Dryer after being dispersed by the distribution plate. Due to the different gravity of the solid phase and the liquid phase, under the action of centrifugal force, the solid phase and the liquid phase are separated, and the liquid phase and the solid phase particles with a diameter smaller than the sieve blue gap are separated, and flow through the sieve basket into the liquid outlet ring at the bottom of Vertical Cuttings Dryer. Inside, and then discharged through the drain pipes on both sides of the bottom. The solid part is kept inside the screen basket, and there is a certain speed difference between the rotor scraper and the screen basket. The drill cuttings are discharged into the collecting funnel under the machine. With the help of the screw conveyor at the bottom, the drill cuttings can enter the cuttings collection box or other collectors.

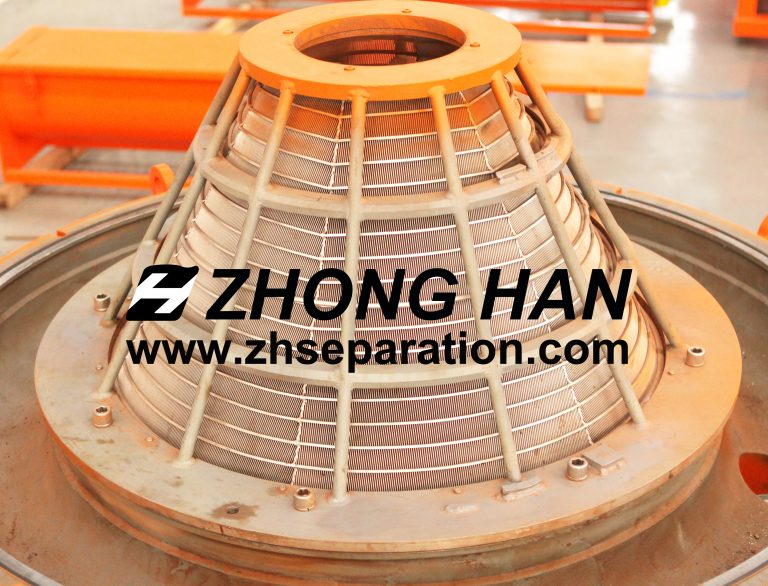

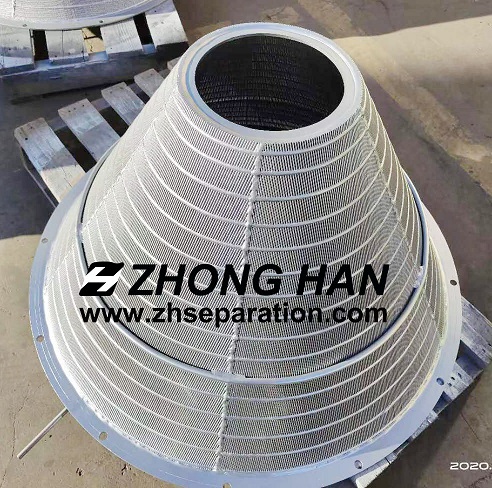

◆ Rotating parts of Vertical Cuttings Dryer such as Screen Baskets, scrapers and flow parts are made of high-quality stainless steel and alloy steel, with a long service life, ensuring stable operation of the equipment.
◆ Vertical Cuttings Dryer with high speed 900rpm produces high centrifugal force to ensure the thorough separation of liquid and solid phases under high centrifugal force.
◆Vertical Cuttings Dryer has two control panel, fixed speed control panel or VFD control panel is optional.
◆The fixed speed control board can set the rated speed before the equipment leaves the factory.
Choose to configure the VFD electronic control system, with the help of the VFD control cabinet, according to the requirements of the use site, adjust the speed of the Vertical Cuttings Dryer to meet the requirements of different working conditions.
◆ The rotor scraper adopts HRC65 chilled steel knife, which is wear-resistant and has a service life of 2-3 times that of ordinary materials, reducing the cost of labor and accessories for equipment maintenance.
◆Our Vertical Cuttings Dryer is equipped with an air scraper to avoid clogging of the screen basket, accelerate the unloading speed of the equipment, and ensure the working efficiency of the equipment.
◆ Vertical Cuttings Dryer equipped with an integrated oil lubrication system, easy maintenance and operation, low cost, and improve the working efficiency of the equipment.
◆ SIEMENS, Schneider or ABB well-known brand electrical components are available for you to choose. Confirm the electrical safety of the equipment, make the operation of the equipment safer and more efficient, and achieve long-term trouble-free work.
