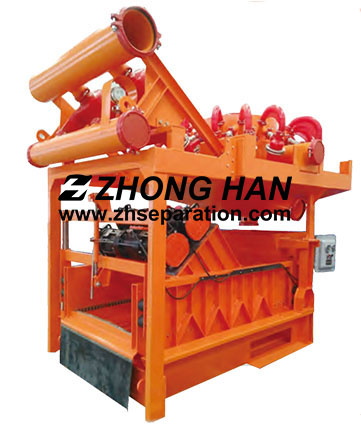

Mud Recycling System is one of the working systems for drilling rig, which can help with reduce the drilling cost. Shale Shaker, Mud Cleaner(Desaner Desilter), Decanter Centrifuge is the main equipments for Mud Recycling System. By mechanical sieving and centrifugal separation, they separate solid particles from the drilling fluid in a fractional manner so that the drilling fluid retains good properties and can be reused.  Mud Cleaner is the third stage of separation on Mud Recycling System for drilling rig, it is consists of a two stage separation process- D-SANDER and D-SANDER. The D-SANDER and D-SANDER Hydro-cyclone make the primary separation, then all the solids from the Hydro-cyclone down to the underflow shale shakers vibrating screens, the fine drilled solids from the drilling fluid will be separated by the vibrating screens with high mesh. We can design the ZH Mud Cleaner with several shale shakers on single skid dual unit, this makes the installation and transportation of the equipment more convenient.

Model: Analog SWACO High Volume Mud Cleaner
Capacity: 120-360m3/h(1500GPM)
Recommend Feed Pump:37kw-75kw.
Q-ty of D-SANDER: 1pc, 2pcs, or 3 pcs.
D-SANDER Separation Point:47-75 micron.
Q-ty of D-SILTER: 8pc, 12pcs, or16 pcs.
D-SILTER Separation Point: 15-47 micron.
Underflow Shale Shaker: Dualmotion Shale Shaker analog SWACO Mongoose Pro
Working Pressure:0.25-0.4Mpa.
Adjusting G force: Max.7.5G ,6.5G normal
Vibration Amplitude: not more than 6.0mm
Deck Adjustment:-3+3
Screen Q-ty: 4 pcs
Screen Size:1165x585mm(46×23 inch)
Screen Area: 2.73m2
Feed Type: Wire Feeder
Weir Height: 736mm
Voltage/Frequency:460V 60HZ, 380V 50HZ, Or customized
Ex Standard: ExdIIBT4 ,IEC EX, ATEX for option

◆ Analog Analog SWACO Hydro-cyclone(TWIN SWACONE D-SILTER) from good quality Polyurethane material, which has long service life.
◆ ZH Analog  SWACO High Volume Mud Cleaner can be used for oil based and water based drilling mud.
◆  ZH Analog SWACO High Volume Mud Cleaner has powerful performance for  heavy mud and load separation for dispersed or non-dispersed drilling mud.
◆  ZH Analog SWACO High Volume Mud Cleaner is available in a variety of configurations-We can choose 1pc, 2pcs, or 3 pcs of D-SANDER, 8pcs,12 pcs,16pcs D-SILTER.
◆Mechanical control design for adjust the Shaker deck angle, Simple operation, low failure rate.
◆ Analog SWACO Shale Shaker bottom deck made from high quality Stainless Steel with  heavy duty anticorrosive paint for long service life. Most of spare parts can be replaced with original Derrikc Shale shaker and Analog SWACO Shale Shaker.
◆ Heat treatment on complete shale shaker deck to make sure the long time stable and reliable performance on High G force operation.
◆ Reliable famous Brand Vibration Motors : OLI,Martin or others brands.
◆ Reliable famous brand Electrical components: SIEMENS, Schneider or ABB available.
