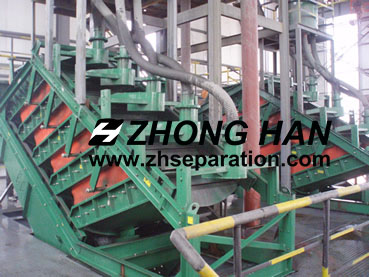

Fine Sizing Stack Vibrating Screen
Fine Sizing Stack Vibrating Screen was introduced for greater capacity requirements based on the others types fine wet screening screen. With the help of Multiple –Stage Flow Divider, the slurry go into the different Multiple deck. Each screen deck has two pcs of High quality Polyweb Urethane Screen Panels, Under the high frequency vibration of the Vibratory Motors the slurry on the screen to move in a straight line. Water and undersize particles passing through the screen fall into an undersize collection hopper, which empties into the common undersize collection launder that carries the material to the undersize discharge flange.
ZH Fine Sizing Stack Vibrating Screen designed for wet screening. The special structure design allows the ZH Fine Sizing Stack Vibrating Screen to have a larger processing capacity in the smallest footprint. The ZH Fine Sizing Stack Vibrating Screen consists of up to five screen decks one above the other and all operating in parallel.
Application Fine Sizing Stack Vibrating Screen
ZH Stack Vibrating Screen can widely used in Aluminium Dross; Bauxite; Chromium Ore; Coal; Colombium; Copper; Feldspar; Ferberite; Garnet; Gypsum; Iron Ore; Kaolin; Lead and Zinc; Mineral Sands; Nitrates; Phosphates; Platinum; Potash; Rare Earth Minerals; Resin Pellets; Scheelite; Silica Sand; Tantulum/Niobium; Tin Ore; Titanium; Tungsten; Ore Uranium and etc.
Constitutive Fine Sizing Stack Vibrating Screen
ZH Stack Sizer is mainly composed of Flow Divider, Feed Box, Screen Box Combination, Screen Mesh, Screen Frame, Small Material Collection Hopper, Small Collection Hopper, Water Spray Device, Super G Vibration Motor, etc.
Features & Benefits ZH Fine Sizing Stack Vibrating Screen
- The ZH Fine Sizing Stack Vibrating Screen can consist of one, two, three, four or five individual sieve decks depending on different capacity requirements on worksite.
- High separation efficiency and minimum footprint.
- High quality Polyweb Urethane Screen Panels, Non-blinding, high-wear, urethane screen surface will not blind with nearsize particles. High open area, up to 45 percent, for maximum flow capacity. Long panel life minimizes operating and maintenance costs.
- 2 pcs of high frequency famous Brand Vibratory Motors greatly improve the high efficiency of screening, to ensure that the ine Sizing Stack Vibrating Screen has a long time without failure.
- Due to the special structure of Screen Deck of ZH Fine Sizing Stack Vibrating Screen, ZH has carried out strict design on the production process of Screen Deck of ZH Fine Sizing Stack Vibrating Screen, the surface of the Screen Deck is treated with polyurea spraying technology as a whole , which increases the wear resistance and corrosion resistance of the equipment and prolongs the service life of the Fine Sizing Stack Vibrating Screen.
- Flo Divider, The optimized design structure of Flo Divider allows the fluid equalizes feed flow from source to each deck for optimal separation efficiency.Flo Divider can be designed by the deck of Stack Sizer. A custom-engineered single or multiple stage Flo-Divider system representatively splits the feed slurry to each Stack Sizer and then to the decks on each machine. Uniform distribution of feed slurry across the entire width of the screen.
- Minimize overgrinding of valuable minerals, improving the performance of downstream processes and increasing grade and/or recovery.
- Increase mill capacity and production rate.
- Low operating and maintenance costs.
- Easy to service.
