NOV Brandt Is the world’s leader in the oil and gas industry, has been focusing on providing the highest quality oilfield products and services , about the shale shaker from NOV Brandt is one of is a very popular model for the Mud Recycling System.
For the solids control system, shale shaker is a primary separation and purification equipment, and the screen is a large amount of wearing parts. The screening performance of the screen determines the primary purification effect of the mud system. The design and application of the screen is to minimize the drilling cost and allow the mud to be recycled. The amount of the screen is a big cost for the mud purification system. The high-quality and long-life screen can be used in a large To a certain extent, reduce drilling costs.

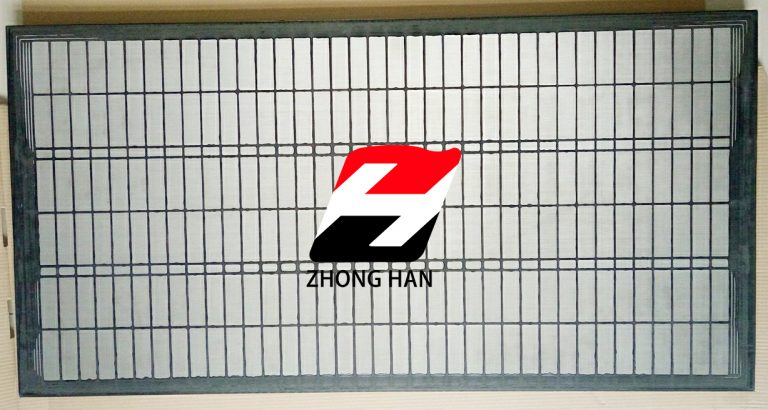

More and more customers like the powerful performance of vibrating screens. Brandt King Cobra Shaker Screen is a frame screen( metal frame or composite frame).

• NOV Brandt King Cobra Replacement Shaker Screen with matel Frame: High welding quality metal frame, 2-3 layers of thick wire mesh cloth, Stick Up Individual seals on the back of the screen frame

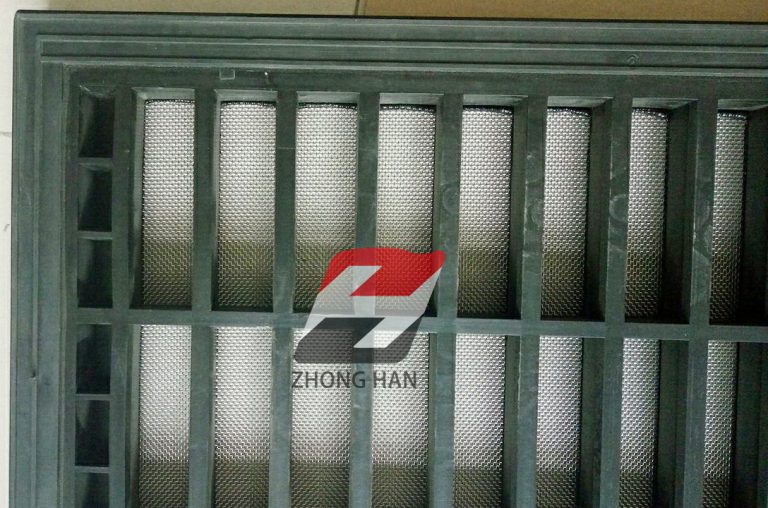

• NOV Brandt King Cobra Replacement Shaker Screen with composite Frame: High-quality injection-molded composite material frame (Our factory will do two times of injection-molded for the frame of the screen, one time is for the composite and the second time is for the rubber seal , so that the frame and the seal are injection molded together, to ensure the working performance of the Shaker Screen in a complex working environment) ,2-3 layers of thick wire mesh cloth.

Material of wire mesh cloth: Stainless Steel 304, SS316, SS316L

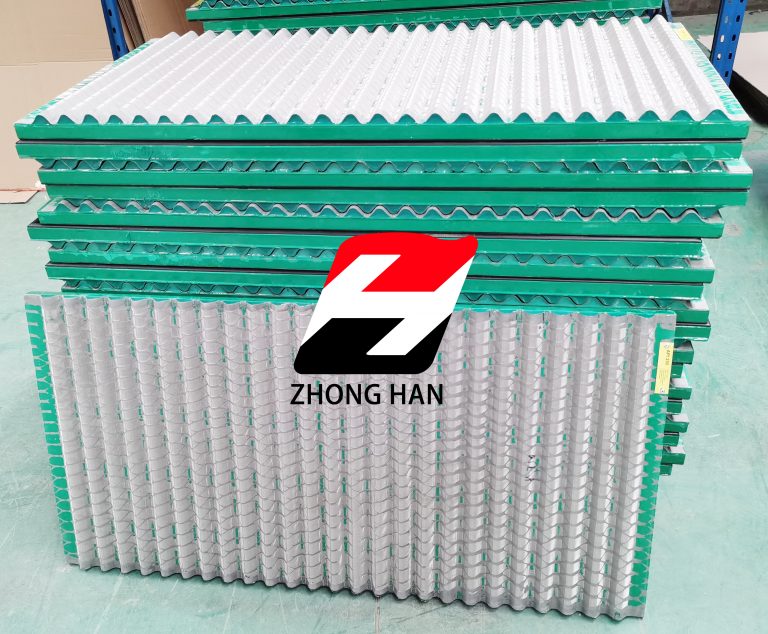

Construction Type: PWP(Perforated Wear Plate) or PMD(Pyramid and Pyramid Plus)
Perforated Mesh Shape: Rectangle
Frame Material: Stainless Steel Q235 steel or Composite Material.
Sealing Rubber Strip: Yes

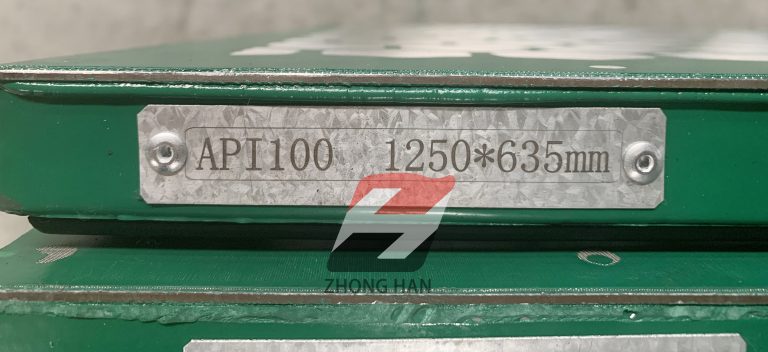

Screen Size:1253x635mm
Layer of Screen:2-3 layers
Standard: API RP 13C
API RP 13C Designation: API20-API325 mesh
Series: XR, XL optional
Warranty Period:1 year
Working Life:400-450hours

• PWP(Perforated Wear Plate) or PMD(Pyramid and Pyramid Plus) for your selection, PMD type provide 38% more nonblanked open area than the PWP type screen.
• The design of the sealing strip can not only close the space between the screen and the screen box, avoid the loss of mud, but also slow down the hard contact between the screen and the screen box, and increase the service life of the screen.
• Compliant with API RP 13C (ISO 13501).
• Repairable screen cells allow for extended screen life and reduced overall screen costs.
